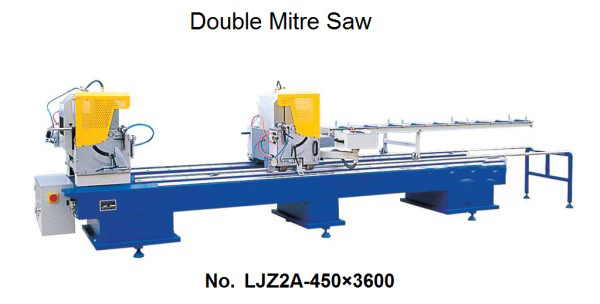

Function:
- For 45°~90°plastic and Aluminium profile cutting.
Features:
- Equipped with cutting angle fine adjustment device.
- Straight line feeding type; the guide for machine body and feeding system adopt linear bearing system to ensure stable feeding and high cutting precision.
- Optional: Machine head could adopt air-hydraulic damping cylinder to cut Aluminium profile.
- Same shaft angle-changing structure for good surface cutting performance.
- Profile supporter is available on the movable head.
- Automatic cutting angle change for 45°and 90°.
- One time two pieces of profile cutting (height of profile less then 60mm).
- With short profile cutting device on left machine head can realize super short profile cutting.
Parameter:
- Air Pressure:0.5MPa~0.8MPa
- Air Consumption:50L/min
- Input Voltage:380V 50Hz
- Input Power:5.25KW
- Spindle Rotary Speed:2800r/min
- Cutting Length Range:290mm~3600mm
- Cutting Width:120mm
- Cutting Height:120mm
- Overall Dimension:6000mm×1300mm×1650mm
- Weight:1200kg
