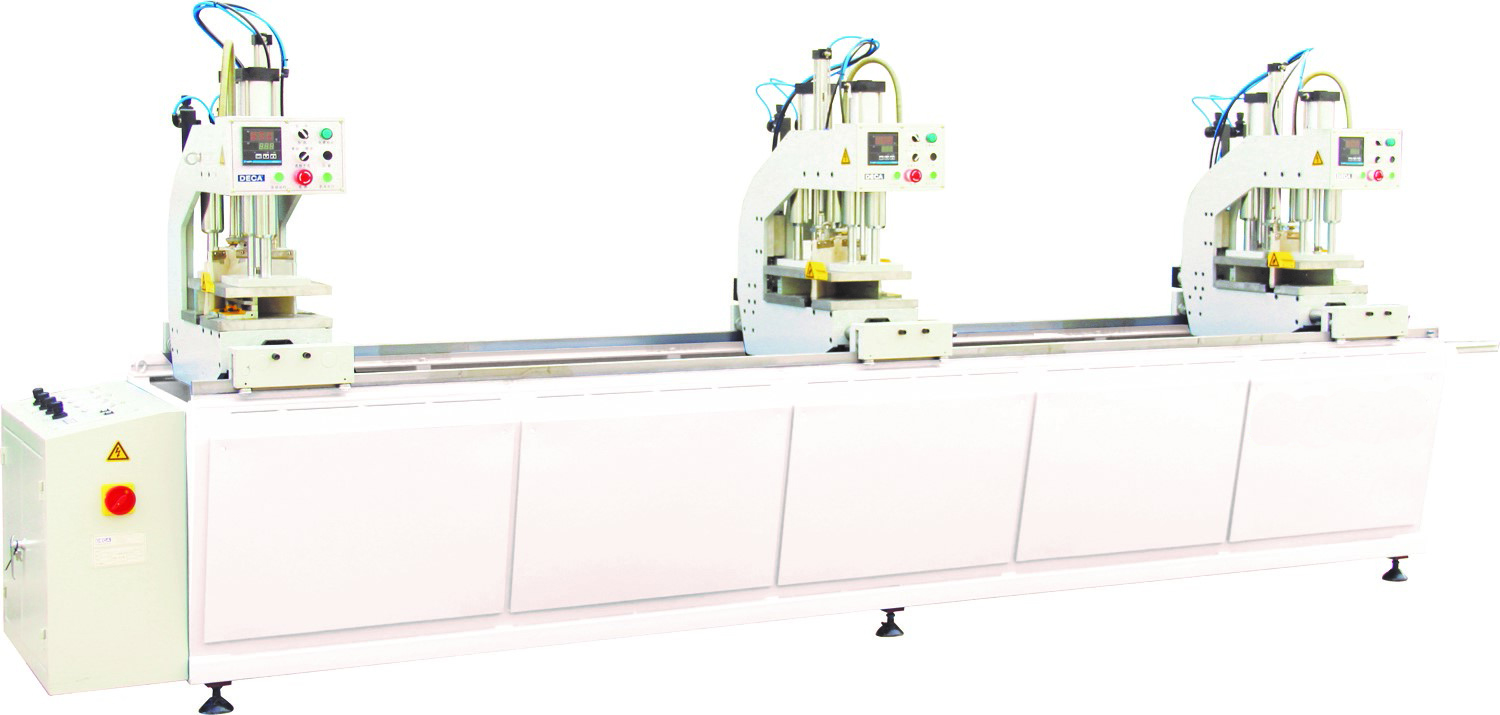

NO.5 เครื่องเชื่อม 3 หัว (SHZ4GC-120×3500)

/ / mechine

Three Head Welding Machine


Used for corner and mullion welding of PVC profile.


  • Four head can work separately or corporately, flexible combination.
  • PLC controls the welding action / program, high reliability.
  • Free angle welding of right machine head.
  • Parameters can be set to meet various profiles processing requirements.
  • High welding precision.
  • Adopt high quality electrical and pneumatically components with high reliability.
  • Good welding corner appearance.


  • Air Pressure: 0.6MPa~0.8MPa
  • Air Consumption: 60L/min
  • Input Voltage: 220V 50Hz
  • Input Power: 3.5KW
  • Welding Height: 20mm~120mm
  • Welding Width: 120mm
  • Welding Range: 400mm×400mm~3500mm×3500mm
  • Overall Dimension: 4400mm×1000mm×1700mm
  • Weight:1080kg
