NO.4 เครื่องเจาะรูกุญแจ/เจาะรูมือจับ SZSB-100

/ / mechine

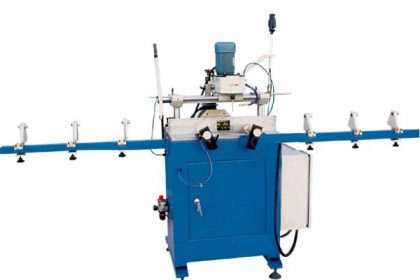

Lock Hole Machine


Milling all kinds of lock holes

Features :

  •  Formed by three-hole drill part (horizontal direction) and copy milling part (vertical direction)
    the height of three-hole drilling can be adjusted easily
  • three-hole drill designed behind and operated easily.adopt vertical axis to ensure the parallel precision of the three-hole drill adopt hydro-pneumatic actuator cylinder feeding to save labor.
  • easy adjustment of the processing position



  • Operation Air Pressure: 0.5~0.8(MPa)
  • Air Consumption: 20L/min
  • Input Voltage: 380 50Hz
  • Main-Shaft Revolution: 11200/910(r/min)
  • Input Power: 1.1 (kW)),0.75(kW)
  • Three-hole Cutter Diameter: Φ12,φ10(mm)
  • Copy cutter diameter: Φ5, Φ8
  • Copy Milling Range: 90×290(mm)
  • Overall Dimension: 3150 x 1020 x 1600 mm
  • Machine Weight: 400(kg)
