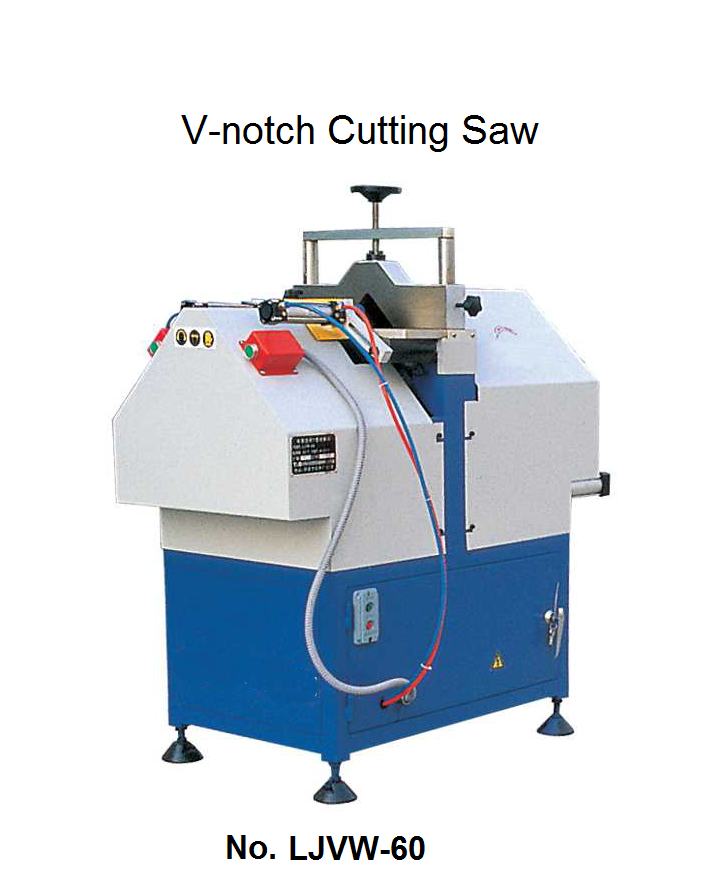

Features:
1. For 90° V-shaped groove cutting
2. Pneumatic driving, easy to operate.
Parameter:
- Air Pressure:0.6～0.8(MPa)
- Air Consumption: 30(L/min)
- Input Voltage: 3N～50Hz 380/220V
- Input Power: 1.5(Kw)
- Spindle RotarySpeed:2800(r/min)
- Cutting Height: 20～60(mm)
- Cutting Width: 120(mm)
- Cutting Length: 300～1600(mm)
- Overall Dimension: 1800×1380×1300（mm）
- Weight:220(kg)
